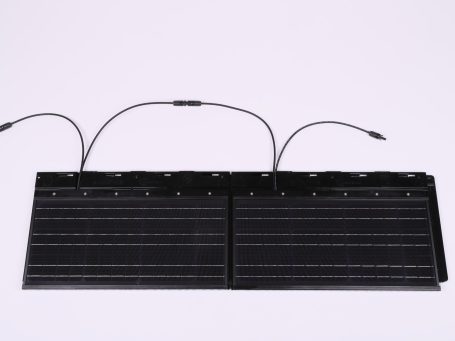

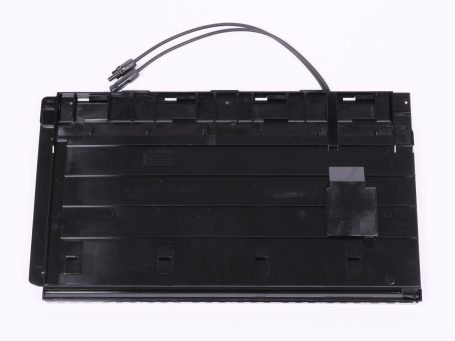

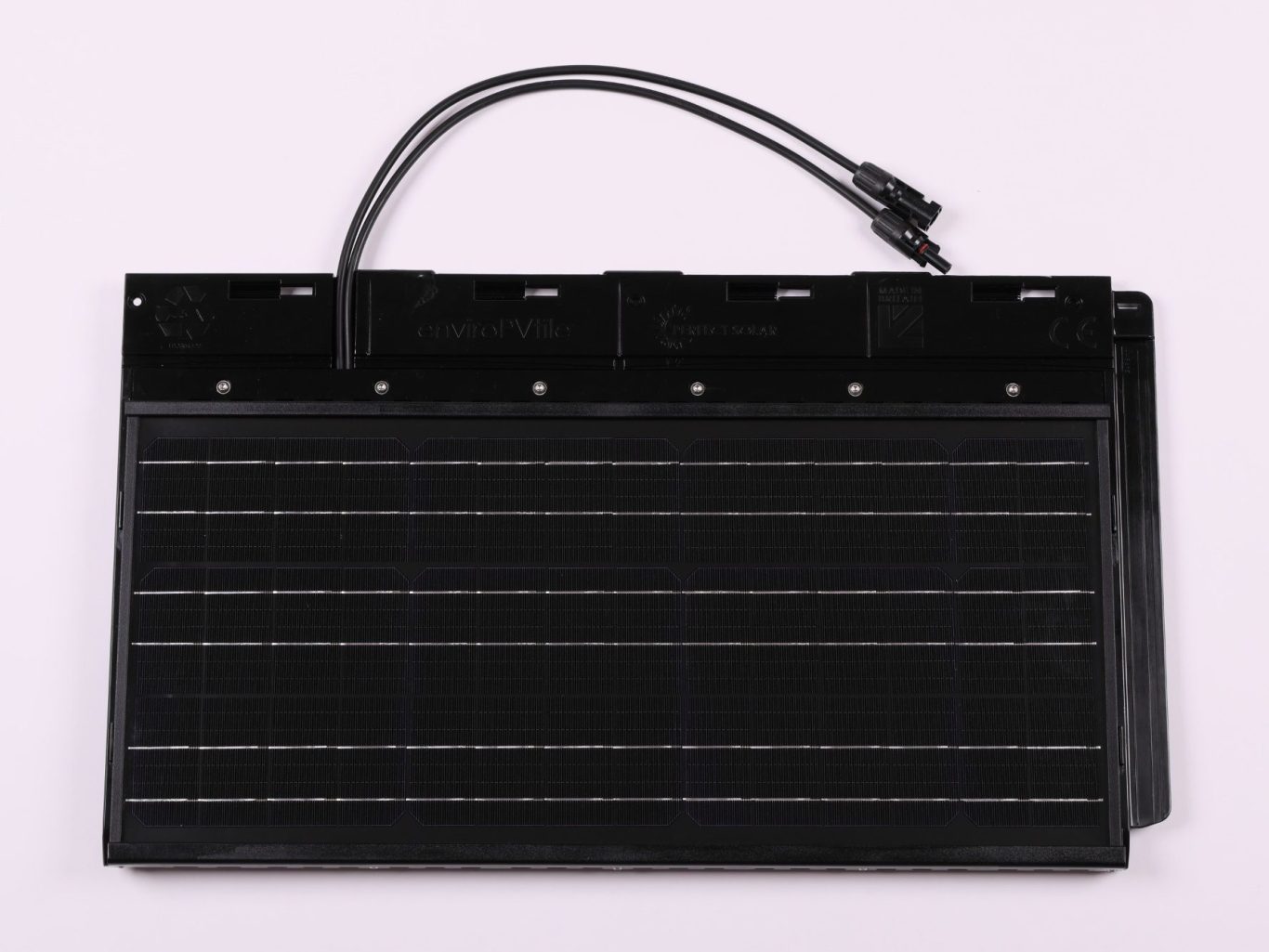

EnvirotilePV Solar Tile

With the launch of EnvirotilePV Solar roof tile, we introduce the first fully integrated solar roofing system that not only powers your home sustainably but also enhances its overall aesthetic appeal. Unlike traditional solar panels that can detract from the beauty of your roof, EnvirotilePV is designed to seamlessly blend in, providing a visually pleasing finish. This innovative product is engineered to work in perfect harmony with the Envirotile roofing system, utilising the award winning 8Fix fixing system, ensuring a reliable and attractive solution for those looking to embrace renewable energy while maintaining the charm of their home.

Product Information

Tested to MCS Standards MCS012 for weather tightness and wind uplift.
Must be used in combination with an roofing system and our fire tested underlay.
In the unlikely event of a failed or damaged PV module, this can be replaced without the need to remove any tiles.
Includes cables and MC4 connections to connect to adjacent tiles.

Sold in boxes of 8 tiles, provides 200w per box (25w per tile). • Overall tile dimensions 600mm x 362mm x 20mm (PV unit 593mm x 271mm). - GSPPVBOX8

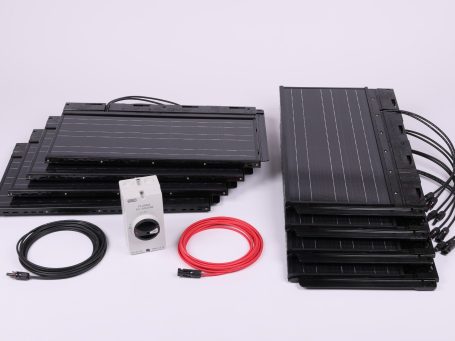

1kw system is 5 boxes. (5 boxes x 8 tiles - 10m +ve cable, 10m -ve cable, 1 isolator box) - GSPPV1KW

Properties

Length : 600mm.
Width : 362mm.
Thickness : 20mm.
PV Unit: 593mm x 271mm
Minimum pitch : 12.5 degrees.
Maximum pitch : 90 degrees.
Quality Warranty : 10 years.
Bre: Test No. P101133-1000 Issue: 2
Bsi: BS5534
BBA
greenspec Pass
MCS certified
ROHS
IEC 61215 / 61730
Exova

Cell Properties

Cell Type MONO Crystalline 78 x 39mm
Number of cells: 42
Size: 593 x 271 x 6.1mm
3.2mm Low iron tempered front glass
Aluminium Alloy groove frame
PV-LH0806 junction box
Output cable: MC4
